How Does a Closed Eccentric Gear Press Improve Heavy-Duty Metal Forming?
2026-09-29
Article Summary
A closed eccentric gear press is designed for manufacturers who require stable force transmission, high rigidity, and reliable precision during large-scale metal forming operations. Unlike conventional pressing equipment, this machine combines a closed-frame structure with an eccentric gear drive system to achieve stronger load resistance, longer stroke capability, and improved forming stability. This article explains how a closed eccentric gear press works, why its structure matters, and how manufacturers can select the right solution for automotive, appliance, forging, and industrial component production.

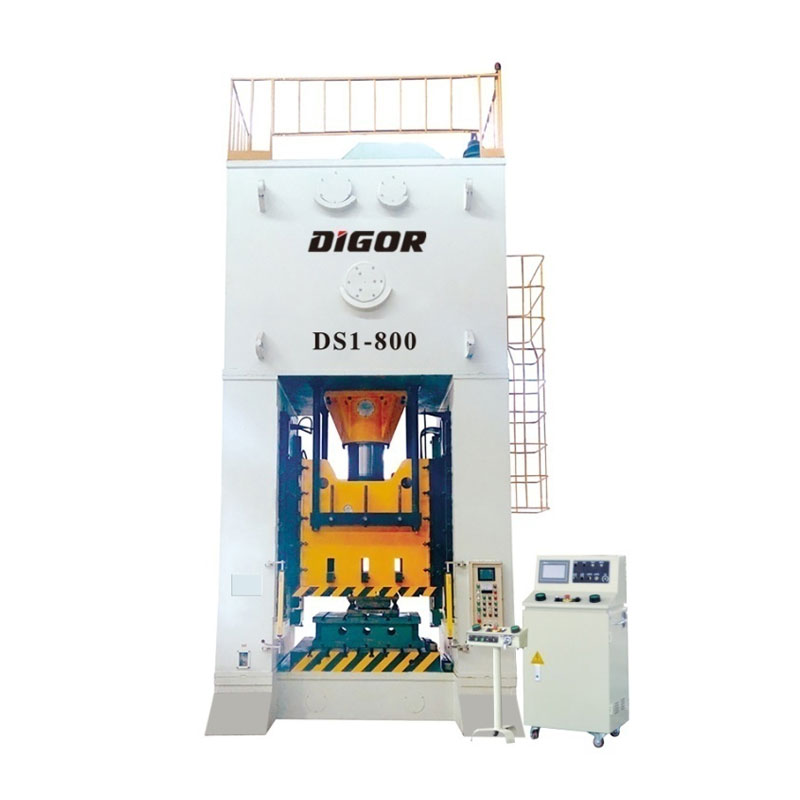

What Is a Closed Eccentric Gear Press?
A closed eccentric gear press is a mechanical power press designed for high-strength stamping, forming, punching, and deep drawing processes. It uses an enclosed frame structure together with an eccentric gear transmission mechanism to convert motor rotation into controlled vertical slide movement.
The closed frame creates a rigid load path around the working area, helping the machine withstand heavy forming forces with reduced deformation. The eccentric gear system provides smooth torque transmission and maintains stable operation during demanding production cycles.
Digor develops closed eccentric gear press solutions for manufacturers who need dependable performance in large-scale metal processing. The equipment is commonly used where production consistency, tooling protection, and long-term operational stability are critical.
Compared with traditional open-type presses, closed eccentric gear presses are more suitable for larger dies, higher tonnage requirements, and applications where uneven loading may occur. The eccentric gear is supported by bearing structures while transmitting torque, allowing the machine to maintain stronger rigidity during operation.
How Does a Closed Eccentric Gear Press Work?
The working principle of a closed eccentric gear press is based on converting rotary movement into linear reciprocating movement. The motor provides driving power, which is transferred through the flywheel, clutch system, gears, and eccentric mechanism.
When the eccentric gear rotates, its offset position creates a circular movement. This movement pushes the connecting rod, which drives the slide upward and downward. The upper die installed on the slide moves toward the lower die fixed on the worktable, applying pressure to the material and creating the required shape.
| Component | Function |
|---|---|
| Motor System | Provides the initial mechanical power for operation. |
| Flywheel | Stores rotational energy and releases power during pressing. |
| Eccentric Gear | Converts rotary motion into controlled vertical movement. |
| Connecting Rod | Transfers movement from the eccentric mechanism to the slide. |
| Slide | Moves the upper die to complete forming operations. |
| Closed Frame | Supports pressing forces and improves structural rigidity. |
The combination of mechanical transmission and rigid frame construction allows the press to maintain stable forming pressure throughout repeated production cycles.
Why the Closed Frame Structure Matters
For heavy-duty stamping applications, machine rigidity directly affects product quality. During forming, the press frame experiences large forces. If the structure has excessive deformation, it can lead to inaccurate parts, uneven die wear, and reduced production efficiency.
A closed-frame design creates a stronger supporting structure compared with open-gap machines. The upper and lower sections are connected together, allowing forming forces to distribute through the entire frame instead of concentrating in a single area.
Main Benefits of Closed Structure
- Higher structural rigidity: Reduces frame deformation during high-load operations.
- Better slide stability: Helps maintain accurate alignment between upper and lower dies.
- Improved tooling protection: Reduces impact caused by unstable movement.
- Longer service life: Supports continuous industrial production.
For manufacturers producing automotive parts, large metal housings, or precision formed components, frame stability is often as important as pressing force.
What Advantages Does a Closed Eccentric Gear Press Provide?
Choosing a press machine is not only about selecting the required tonnage. Production efficiency depends on how consistently the machine delivers force, controls movement, and protects expensive tooling.
| Performance Factor | Production Benefit |
|---|---|
| High Torque Transmission | Supports difficult forming operations with strong mechanical output. |
| Long Stroke Capability | Suitable for deeper forming and larger components. |
| Stable Slide Movement | Improves dimensional accuracy of finished parts. |
| Rigid Frame Design | Reduces deformation under heavy loads. |
| Continuous Operation Ability | Supports high-volume manufacturing environments. |
Reduced Production Problems
Many manufacturers face issues such as inconsistent dimensions, frequent die adjustment, and excessive maintenance when using unsuitable forming equipment. A properly configured closed eccentric gear press helps reduce these challenges by providing a more controlled mechanical process.
Where Are Closed Eccentric Gear Presses Used?
Due to their strength and stability, closed eccentric gear presses are widely applied in industries requiring reliable metal deformation processes.
| Industry | Typical Applications |
|---|---|
| Automotive Manufacturing | Body panels, structural parts, brackets, and chassis components. |
| Home Appliances | Metal covers, shells, and formed panels. |
| Electrical Equipment | Enclosures and precision stamped components. |
| Hardware Production | High-volume metal parts and accessories. |
| Forging Industry | Heavy metal forming and high-strength components. |
The machine is especially valuable when manufacturers need repeatable quality across thousands or millions of production cycles.
How to Select the Right Closed Eccentric Gear Press?
Selecting the correct press requires evaluating the complete production requirement rather than focusing only on machine capacity.
Important Selection Factors
- Material Characteristics: Consider material thickness, strength, and forming difficulty.
- Required Tonnage: Select sufficient capacity according to forming force calculations.
- Die Size: Ensure the working table and slide dimensions match tooling requirements.
- Stroke Length: Choose according to the forming depth and production process.
- Automation Requirements: Consider integration with feeding systems and production lines.
Digor provides engineering support to help customers match machine specifications with actual production conditions, improving equipment utilization and investment value.
How Can a Closed Eccentric Gear Press Maintain Long-Term Performance?
Regular maintenance is essential for maintaining precision and extending machine service life. A preventive maintenance plan helps identify potential issues before they affect production.
| Maintenance Item | Recommended Attention |
|---|---|
| Lubrication System | Check regularly to ensure smooth mechanical movement. |
| Gear Condition | Inspect wear, clearance, and lubrication status. |
| Electrical System | Check control components and safety functions. |
| Die Alignment | Maintain accurate positioning for stable forming quality. |
Frequently Asked Questions
Q1: What is the main difference between a closed eccentric gear press and a standard mechanical press?
The main difference is the combination of a closed rigid frame and eccentric gear transmission. This structure provides stronger support, better load distribution, and improved stability for heavy forming applications.
Q2: Which materials can be processed by a closed eccentric gear press?
It can process various metal materials including steel sheets, stainless steel, aluminum, and other industrial alloys depending on machine capacity and tooling design.
Q3: Why choose Digor for closed eccentric gear press solutions?
Digor focuses on developing reliable metal forming equipment with practical industrial performance. The company combines engineering experience, manufacturing capability, and application support to provide press solutions suitable for different production requirements.
Q4: Can a closed eccentric gear press be integrated into an automated production line?
Yes. According to production requirements, the press can be configured with feeding systems, material handling equipment, and other automation solutions to improve manufacturing efficiency.
Improve Your Metal Forming Efficiency with Digor
Selecting the right press equipment can directly influence production stability, product quality, and long-term operating costs. A closed eccentric gear press provides manufacturers with a strong foundation for demanding stamping and forming processes.
With professional engineering experience and reliable manufacturing capability, Digor is committed to providing efficient and durable press solutions for global industrial customers.
If you are looking for a closed eccentric gear press that matches your production requirements, please contact us today. Digor will help you evaluate your application needs and provide a suitable forming solution for your business.
