How Does a Refrigerated Air Dryer Work?
2026-04-14
Abstract
A Refrigerated Air Dryer is a critical component in compressed air systems designed to remove moisture and prevent water contamination in pneumatic equipment. Moisture in compressed air can lead to corrosion, equipment failure, production downtime, and product quality issues. This article explains how refrigerated air dryers work, their internal mechanisms, advantages, selection criteria, and maintenance requirements. It also highlights practical industrial applications and how AQWK delivers reliable solutions for compressed air treatment systems.
Table of Contents
- Abstract
- Overview of Refrigerated Air Dryer
- Working Principle Explained
- Main Components
- Types of Refrigerated Air Dryers
- Key Benefits in Industrial Use
- Application Scenarios
- Selection Guide
- Maintenance and Troubleshooting
- Comparison Table
- FAQ
- Conclusion & Contact Information
Outline
This article provides a structured breakdown of how refrigerated air dryers function within compressed air systems. It begins with fundamental concepts of air compression and moisture formation, then moves into system components, refrigeration cycles, performance advantages, and real-world applications. Finally, it offers selection guidance and maintenance practices for long-term operational stability.

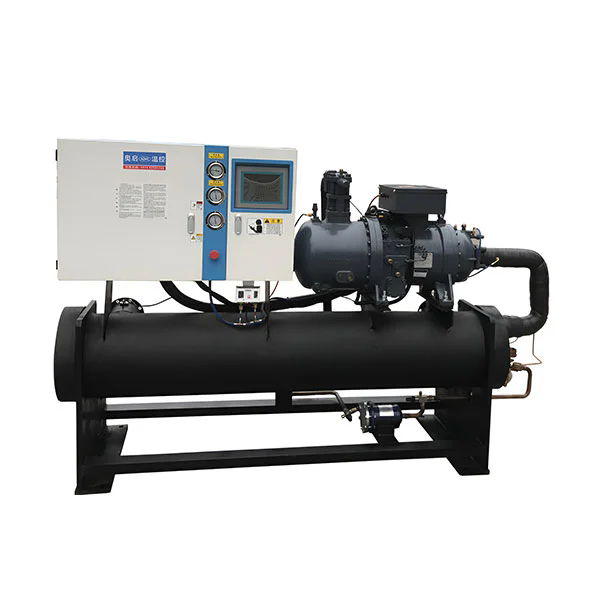

Overview of Refrigerated Air Dryer
In industrial environments, compressed air is widely used to power tools, machinery, and automation systems. However, during compression, air naturally accumulates moisture. If untreated, this moisture can condense into water inside pipelines and equipment.
A Refrigerated Air Dryer solves this issue by cooling compressed air to a low temperature where water vapor condenses and can be removed. The dried air is then reheated slightly before exiting the system, ensuring a stable and safe dew point for downstream applications.
Working Principle Explained
The working principle of a refrigerated air dryer is based on the refrigeration cycle. Compressed air passes through a heat exchanger and is cooled using a refrigerant system. As the temperature drops, moisture in the air reaches its dew point and condenses into liquid water.
Step-by-step process:
- Hot compressed air enters the dryer.
- Air is pre-cooled in an air-to-air heat exchanger.
- Air flows through an evaporator where refrigerant absorbs heat.
- Moisture condenses into water droplets.
- Condensate is separated and drained automatically.
- Dried air is reheated to prevent pipeline sweating.
This controlled cooling process ensures consistent air quality and prevents moisture-related damage in industrial systems.
Main Components
- Compressor: Drives the refrigerant cycle
- Condenser: Removes heat from refrigerant
- Evaporator: Cools compressed air
- Moisture Separator: Removes condensed water
- Drain Valve: Automatically expels collected water
- Heat Exchanger: Improves energy efficiency
Types of Refrigerated Air Dryers
Refrigerated air dryers are generally classified into two main categories:
- Air-Cooled Type: Uses ambient air to cool refrigerant; suitable for most industrial environments.
- Water-Cooled Type: Uses water for heat exchange; ideal for high-capacity systems or hot environments.
Each type offers distinct advantages depending on operational scale, energy efficiency needs, and environmental conditions.
Key Benefits in Industrial Use
Installing a refrigerated air dryer provides multiple operational advantages:
- Prevents corrosion in pipelines and machinery
- Improves equipment lifespan
- Reduces maintenance costs
- Ensures stable production quality
- Minimizes downtime due to moisture damage
Companies like AQWK design systems that optimize air purity while maintaining energy efficiency, ensuring consistent industrial performance.
Application Scenarios
Refrigerated air dryers are widely used across industries:
| Industry | Application |
|---|---|
| Manufacturing | Pneumatic tools and automation systems |
| Food & Beverage | Packaging and air-controlled processing |
| Pharmaceutical | Sterile air supply systems |
| Automotive | Paint spraying and assembly lines |
| Electronics | Precision component manufacturing |
Selection Guide
Choosing the right refrigerated air dryer requires careful evaluation of system requirements:
- Air Flow Capacity: Match dryer capacity with compressor output
- Dew Point Requirement: Lower dew points offer higher air purity
- Energy Efficiency: Consider power consumption levels
- Operating Environment: Temperature and humidity conditions
- Maintenance Accessibility: Ease of servicing components
AQWK provides customized configurations to ensure optimal system integration for diverse industrial needs.
Maintenance and Troubleshooting
Routine Maintenance Checklist:
- Inspect drain valves regularly
- Clean condenser coils
- Check refrigerant pressure levels
- Monitor dew point stability
- Ensure proper airflow circulation
Common Issues:
- High outlet moisture – may indicate refrigerant loss
- Reduced cooling efficiency – often caused by dirty condenser
- Pressure drop – possible blockage in system
Comparison Table
| Feature | Refrigerated Air Dryer | Desiccant Air Dryer |
|---|---|---|
| Moisture Removal | Moderate dew point control | Very low dew point capability |
| Energy Consumption | Lower | Higher |
| Maintenance | Simpler | More complex |
| Application | General industrial use | Critical high-purity systems |
FAQ
Q1: What is the main purpose of a refrigerated air dryer?
It removes moisture from compressed air to prevent corrosion and equipment damage.
Q2: How often should maintenance be performed?
Basic inspections should be done monthly, with full servicing every 6–12 months.
Q3: Can AQWK provide customized solutions?
Yes, AQWK offers tailored configurations based on airflow, pressure, and industry requirements.
Q4: Is energy consumption high?
Refrigerated air dryers are designed for efficient operation with relatively low energy usage.
Conclusion & Contact Information
A Refrigerated Air Dryer plays an essential role in maintaining clean, dry, and reliable compressed air systems. By removing moisture effectively, it ensures longer equipment life, improved production efficiency, and reduced operational risks. Whether used in manufacturing, food processing, or precision industries, its value is significant.
AQWK is committed to providing high-performance air treatment solutions designed to meet demanding industrial standards. With advanced engineering and reliable system design, AQWK helps businesses achieve stable and efficient operations.
For more information, technical consultation, or customized solutions, contact us at AQWK today and let our team support your compressed air system needs.
