What Exactly is a Capsule Pressure Gauge and How Can It Benefit Your System?
2025-08-27

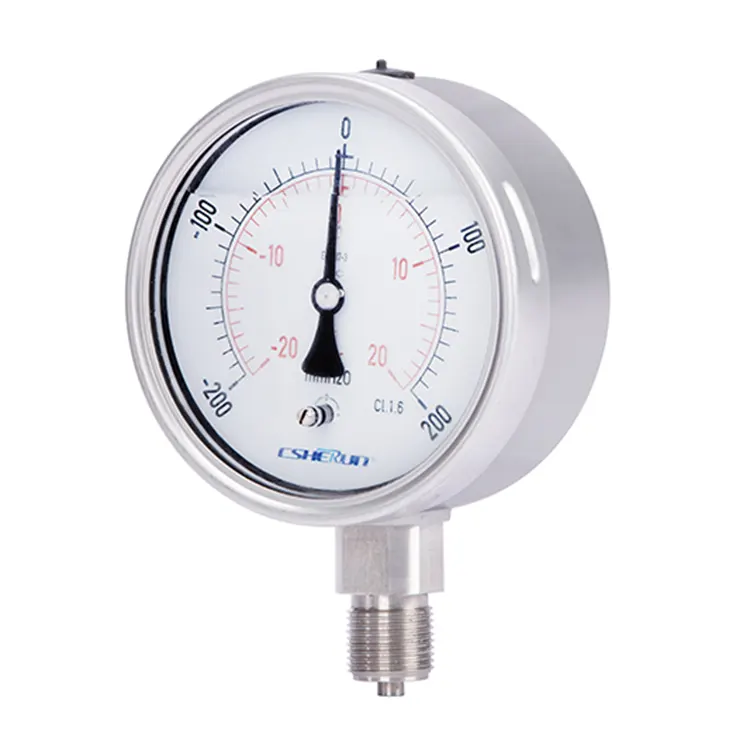

If you're involved in industrial processes, HVAC, hydraulic systems, or any application where precise pressure measurement is critical, you've likely encountered the term "Capsule Pressure Gauge." But what sets it apart from other pressure instruments? Simply put, a capsule pressure gauge is designed for measuring low pressures of dry gases, particularly when high accuracy is required in environments with minimal pressure fluctuations. Its unique capsule element, typically consisting of two thin, concentric diaphragms welded together, makes it exceptionally sensitive to slight pressure changes.
At Changshu Herun Import&Export Co., Ltd., we specialize in providing high-quality capsule pressure gauges that meet rigorous industrial standards. Our products are engineered for durability, precision, and reliability, ensuring optimal performance in your specific applications.
Key Product Parameters of Our Capsule Pressure Gauge
To help you understand the technical excellence of our gauges, here are the detailed specifications presented in both list and table formats for clarity.
List of Key Features:
-
Measurement Range: Typically from 0 to 25 kPa up to 0 to 40 kPa, suitable for low-pressure applications.
-
Accuracy: Class 1.0 or Class 1.6 as per EN 837-3 standards, ensuring reliable readings.
-
Connection: Standard lower mounting with threaded connections (e.g., G⅛, G¼, or M10x1).
-
Case: Made from robust stainless steel or brass, with a crimped ring design for safety.
-
Window: Constructed from safety glass or durable polycarbonate.
Table of Technical Specifications:
| Parameter | Specification Details |
|---|---|
| Model | HR-CPG Series |
| Pressure Range | 0~1, 1.6, 2.5, 4, 6, 10, 16, 25, 40 kPa |
| Accuracy Class | ±1.0% or ±1.6% of full scale |
| Connection Size | G⅛, G¼, M10x1, or customized |
| Case Material | Stainless steel SS304 or brass |
| Dial Size | 40mm, 50mm, 63mm, 100mm |
| Pointer Material | Aluminum |
| Element Material | Phosphor bronze or 316 stainless steel |
| Operating Temp | -20°C to +60°C |
| Protection Level | IP54 (splash-proof) or higher upon request |
| Fill Fluid Options | Glycerin, silicone, or dry |
This combination of features ensures that our capsule pressure gauge delivers not only precision but also longevity, even in challenging conditions.
Why Choose Our Capsule Pressure Gauge?
Our gauges are ideal for applications such as medical equipment, filtration systems, cleanrooms, and pneumatic controls. They offer:
-
Superior Sensitivity: Thanks to the capsule element design, which detects minute pressure variations.
-
Enhanced Durability: Constructed with materials resistant to corrosion and wear.
-
Easy Installation: Standard connections simplify integration into existing systems.
-
Customization: We at Changshu Herun Import&Export Co., Ltd. provide options for dial size, connection types, and fill fluids to meet your specific needs.
Investing in our capsule pressure gauge means investing in accuracy and reliability that protects your machinery and processes.
Capsule Pressure Gauge FAQ Common Questions
1. What is the typical application of a capsule pressure gauge?
Capsule pressure gauges are primarily used for measuring low pressures of dry, non-corrosive gases. They are common in HVAC systems, medical devices, environmental testing equipment, and pneumatic controls where high sensitivity to slight pressure changes is required.
2. How do I maintain a capsule pressure gauge to ensure longevity?
Regular maintenance includes checking for calibration drift every 6-12 months, ensuring the gauge is free from dust and moisture, and verifying that connections are tight and leak-free. For gauges filled with fluid, inspect for bubbles or discoloration, which might indicate a need for service. Avoid exposing the gauge to overpressure or temperatures outside its specified range.
3. Can a capsule pressure gauge be used with liquids or corrosive media?
No, capsule pressure gauges are generally designed for dry, clean gases only. The sensitive capsule element can be damaged by moisture, particulates, or corrosive substances. If your application involves liquids or aggressive media, consider a diaphragm seal or a different type of pressure gauge designed for such conditions.
Partner with Us for Your Pressure Measurement Needs
Choosing the right pressure gauge is crucial for system efficiency and safety. With decades of experience, Changshu Herun Import&Export Co., Ltd. offers capsule pressure gauges that blend precision engineering with robust construction. Our products are trusted by industries worldwide for their accuracy and reliability.
For more information, custom solutions, or to place an order, contact us at Changshu Herun Import&Export Co., Ltd. We are here to help you optimize your systems with our superior pressure measurement instruments.
